Color Viewing Booths are necessary for the proper inspection & color discrimination of colored materials


The GTI ColorMatcher® CMB model line offers full- size, multi-source viewing system that incorporates the following features:

NEW Push-Button Control

Instant On" Light Source Selection plus EasyAutomatic Source Sequencing

Sph0081.gif (1442 bytes) 5 Standard Light Sources includes Daylight D65 (D50 optional),  Cool
    White Fluorescent (or TL-84 equivalent),   Incandescent,  & Ultraviolet (BLB)
Sph0081.gif (1442 bytes) Custom Light Sources available (Deluxe Cool White, Horizon Sunlight, etc.)



Model

Description

Viewing Area

CMB-2028

GTI ColorMatcher

20" deep x 28" wide x 20" high

CMB-2028/FS

CMB-2028 with floor stand

20" deep x 28" wide x 20" high

CMB-2540

GTI ColorMatcher

25" deep x 40" wide x 25" high

CMB-2540/FS

CMB-2540 with floor stand

25" deep x 40" wide x 25" high

CMB-3052

GTI ColorMatcher

30" deep x 52" wide x 30" high

CMB-3052/FS

CMB-3052 with floor stand

30" deep x 52" wide x 30" high

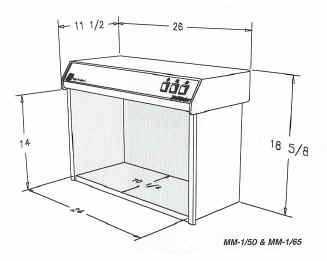

The GTI MiniMatcher model MM-1 series is compact, multi-source viewing system that provides the 3 standard light sources: Artificial Daylight "Store" light and "Home" light



Sph0081.gif (1442 bytes) Model MM-1/65 - Daylight D65,  Cool White Fluorescent,  & Incandescent
Sph0081.gif (1442 bytes) Model MM-1/50 - Daylight D50,  Cool White Fluorescent,  & Incandescent
Sph0081.gif (1442 bytes) Model MM-1UV/65 - Daylight D65, Cool White Fluorescent,  Incandescent & Ultraviolet
Sph0081.gif (1442 bytes) Model MM-1UV/50 - Daylight D50, Cool White Fluorescent,  Incandescent & Ultraviolet
Sph0081.gif (1442 bytes) TL-84 can be ordered in place of Cool White Fluorescent source
